Unified Defect Analysis for BBT, AOI & VRS
Empower your production with real-time defect insights, Gerber-based visual mapping, and seamless data integration
BBT, AOI & VRS
  • HOME
  • Service
  • BBT, AOI & VRS
Manufacturers face rising quality demands and complex inspection data streams.
Our BBT/AOI/VRS platform lets you:
  • Instantly identify panel- or lot-level defect rates
  • Drill down into specific defect categories by equipment or customer
  • Access all defective images in one place
  • Export actionable reports in Excel for deeper analysis
Main Functions

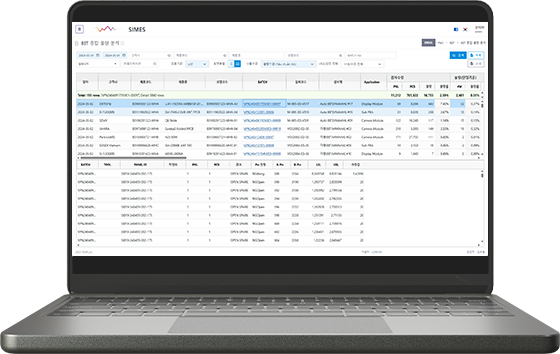

BBT/AOI/VRS Data Analysis
Analyze defect rates by panel, LOT, customer, and equipment; view counts and statistics by defect type; drill into detailed defect items; Excel download.

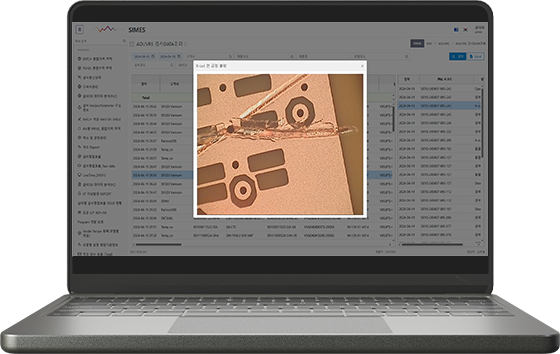

AOI/VRS Image Management
Automatic upload of defect images to the server and unified viewing interface.

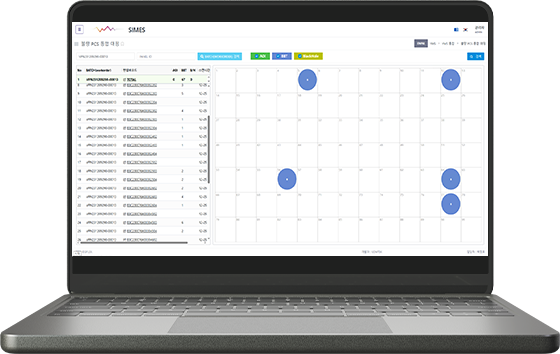

Gerber-Based Position Mapping
Map BBT defect pieces and AOI/VRS panel coordinates on your original Gerber files; explore defect scatter plots.

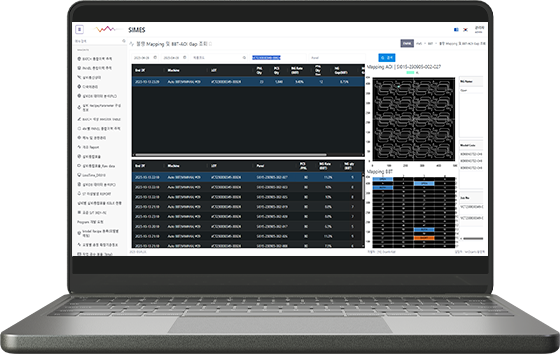

Integrated Mapping
Combine BBT and AOI/VRS data on the same panel, piece by piece, with clear GAP indicators between inspection methods.
BBT/AOI/VRS Data Analysis
Analyze defect rates by panel, LOT, customer, and equipment; view counts and statistics by defect type; drill into detailed defect items; Excel download.
AOI/VRS Image Management
Automatic upload of defect images to the server and unified viewing interface.
Gerber-Based Position Mapping
Map BBT defect pieces and AOI/VRS panel coordinates on your original Gerber files; explore defect scatter plots.
Integrated Mapping
Combine BBT and AOI/VRS data on the same panel, piece by piece, with clear GAP indicators between inspection methods.
Key Features
Multi-Angle Analysis View

Grid, chart, and scatter-plot dashboards for in-depth defect trend analysis.

Pre-Processing Service

Rapid data handling through automated preprocessing pipelines.

All-In-One Dashboard

Unified mapping and analytics on a single screen for faster decision-making.

Gerber-Driven Visualization

Leverage original PCB Gerber files for precise, visual defect localization.

Multi-Angle Analysis View

Grid, chart, and scatter-plot dashboards for in-depth defect trend analysis.

Pre-Processing Service

Rapid data handling through automated preprocessing pipelines.

All-In-One Dashboard

Unified mapping and analytics on a single screen for faster decision-making.

Gerber-Driven Visualization

Leverage original PCB Gerber files for precise, visual defect localization.
